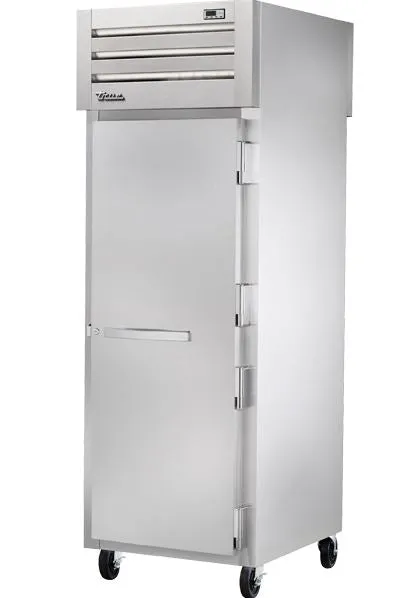

True RefrigerationSTA1HPT-1S-1SDescription
Storing warm pre-cooked and baked product. this True STA1HPT-1S-1S Spec Series pass-thru heated cabinet features three PVC-coated wire shelves. Its exterior has stainless steel sides to match the stainless steel doors; its interior has aluminum sides and backing with a stainless steel ceiling and floor. To keep the cabinet at set temperatures between 140 and 180 degrees Fahrenheit. its walls are foamed with polyurethane insulation. The temperature is digitally displayed on the outside in Fahrenheit or Celsius.
This True STA1HPT-1S-1S mobile heated cabinet's pass-thru design means that the front and rear doors can be accessed at the same time. Both doors are made of stainless steel and have magnetic gaskets to keep warm air inside. They can stay open past 120 degrees to facilitate loading and unloading. but if opened less than 120 degrees. they close on their own. Metal handles provide a comfortable grip. and bolt-style locks minimize theft and tampering. To secure each door to the cabinet. four cam-lift hinges are set in place.
Product Details
- Part of the Spec Series
- Keeps baked and cooked food warm
- Exterior has a stainless steel door and sides
- Interior has aluminum sides and back with a stainless steel ceiling and floor
- Cabinet is insulated with polyurethane foam
- 5-in.-diameter castors enable movement
- 3 chrome-plated shelves hold contents
- Temperature holding range: 140-180 degrees F
- Digital display shows temperatures in Fahrenheit or Celsius
- Heating element is stainless steel for uniform heat generation
- Low-velocity fans circulate warm air around cabinet
- Humidity can be controlled with a vent on top of the cabinet
Pass-thru Door Design
- Pass-thru design enables front and back to be accessed at once
- Magnetic gaskets prevent warm-air leaks
- 4 cam-lift hinges securely attach door to the cabinet
- Can stay open beyond 120 degrees
- Close on their own under 120 degrees
- Metal handles offer a comfortable grip
- Bolt-style locks protect contents
Dimensions & Utilities
- Shelves: 25 in. W x 2734in. D
- Overall: 2712in. W x 3918in. D x 8418in. H
- 1.500 W
- 208-240 V/60 Hz/1 ph. 9-ft. cord with a NEMA 6-15P plug
True Refrigeration STA1HPT-1S-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless Steel |
| Controls | Digital |
| Depth (in) | 36.13 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 77.75 |
| Hertz | 60 |
| kW | 1.5 |
| Pan Capacity | 3 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 27.5 |
| Series | SPEC SERIES |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 400.00 |
