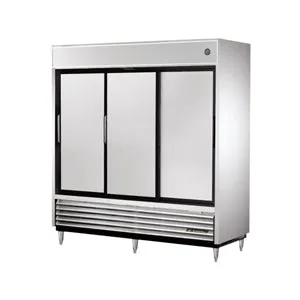

Measuring 78¹₈inches long. the True TSD-69 TSD series reach-in refrigerator has three sections that each have three wire shelves. which are adjustable on aluminum pilasters in¹₂-inch increments. Stored items are refrigerated from 33 to 38 degrees Fahrenheit at a temperature chosen by the user. and fans move cold air around the items so they are cooled consistently. For visibility. interior lighting brightens the shelves.

Mounted above the doors. a rocker switch activates the safety-shielded interior lighting. This True TSD-69 three-section refrigerator has a corrosion-resistant exterior that consists of a stainless steel front. anodized aluminum sides. and a GalFan-coated steel back. Its three doors close by themselves and slide open smoothly. and the doors' clear-coated aluminum liners match the cabinet interior's liner. Insulated with polyurethane foam. the doors and cabinet strengthen the structure and trap cold air inside.

Product Details

• Part of the TSD series
• Safety-shielded interior lighting is controlled by a rocker switch that is mounted above the doors
• Stainless steel front with anodized aluminum ends
• Corrosion-resistant GalFan coating on steel back
• Doors are fitted with 12-in.-long. molded plastic handle
• 9 heavy-duty. PVC-coated wire shelves
• Shelves are adjustable in¹₂-in. increments
• Shelf support pilasters are constructed of aluminum
• 4 chrome-plated clips per shelf
• Steel frame rail is coated in black powder for corrosion protection
• Self-closing doors have a counterbalanced weight system for smooth. positive closure
• Sliding doors ride on the stainless steel V-channel with stainless steel bearings
• Doors come fitted within plastic channel frame
• Digital temperature display on exterior
• High-density polyurethane insulation foams doors and cabinet structure
• Attractive interior is coated with clear aluminum liner

• Coved corners on stainless steel floor reduce debris buildup
• Frame rail comes fitted with 6-in. legs

Refrigeration System

• Epoxy-coated evaporator reduces potential for corrosion
• Self-lubricating cast iron evaporator fan motor
• Large fan blades increase energy efficiency with low-velocity. high-volume airflow
• Provides speedy temperature recovery and quick run times
• Temperature holding range: 33-38 degrees F
• Capillary tube system is self-contained and uses environmentally friendly R134A refrigerant
• Condensing unit is bottom mounted for convenient maintenance
• Compressor runs in coolest. most grease-free area of kitchen
• Storage area is available on top of unit

Dimensions & Utilities

• Shelves: 23⁷₈in. W x 20⁹₁₆in. D
• Overall: 78¹₈in. W x 30 in. D x 84¹₂in. H
• 12 A.¹₂HP
• 115 V/60 Hz/1 ph. 9-ft. cord with a NEMA 5-15P plug

True Refrigeration TSD-69 Specifications
